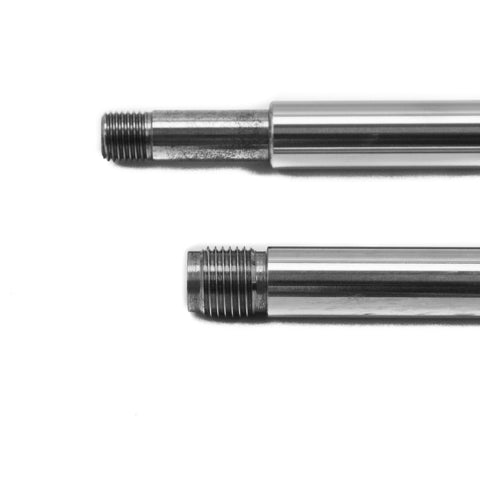

Fox - Shock Shaft, .5" OD, Solid, End Bottoming, (Select Length)

Includes (1) Solid Shaft

Dimensions:

A: Shaft Total length: Select Above

B: Shaft OD: 0.500"

C: Mount 0.55" Length x 1/2-20 TPI (End Bottoming)

D: Post 1.200" Length x 3/8-24 TPI

In order to provide you with the correct fitment, please measure the shaft and choose the measurements above. Contact us if you need a spec not listed.

 View Measurement Diagram

A. Shaft Total Length:

Measure the entire length of the shaft from end to end.

B. Shaft Outer Diameter:

Measure the diameter of the shaft

C. Mount Length:
Measure the mount from the end of the chrome to the end of the threads.

D. Post Length:
Measure the post from the end of the chrome to the end of the threads.

E. Chrome Length:
Measure the length from beginning of the chrome to the end of the chrome.

Part Number:
This product has many variants. Not all specs are recorded. Contact us if you need specs that are not listed.

Recommended Shaft Clamp #64-35-030-A
