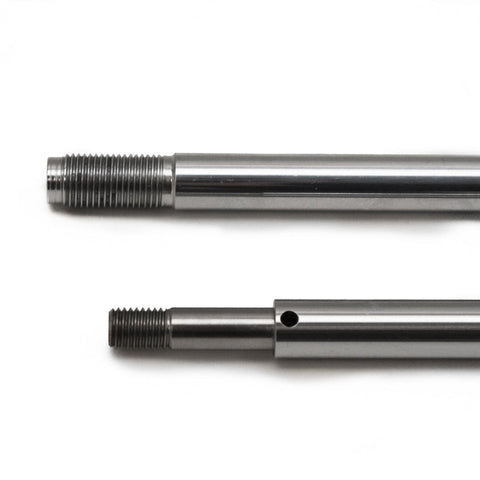

KYB/HPG - 12.5mm RA, HC Shaft, Front
Available
Includes (1) Shaft with internal parts and metering rod.
Application:
Shaft can be used with either the black style HPG RA knob eyelets, or silver slotted screw HPG RA eyelets.
Dimensions:
Shaft OD: 0.492"
Shaft Total Length: Select above
Post Length:
Post TPI:
Mount Length: 1.1"
Mount TPI: Select above
In order to provide you with the correct fitment, please measure the shaft and choose the measurements above. Contact us if you need a spec not listed.
A. Shaft Total Length:
Measure the entire length of the shaft from end to end.
B. Chrome Length:
Measure the length from beginning of the chrome to the end of the chrome.
C. Post Length:
Measure the post from the end of the chrome to the end of the threads.
D. Mount Length:
Measure the mount from the end of the chrome to the end of the threads.
Part Number:
This product has many variants. Not all specs are recorded. Contact us if you need specs that are not listed.
Recommended Shaft Clamp #64-35-030-A
